Explore our flagship industrial gear reducers, specialized brushless drive units, harmonic joint actuators, and custom OEM motor assemblies engineered for high torque density and zero-backlash precision.
Modern industrial automation, electric vehicles (EVs), medical devices, and intelligent robotic platforms demand unprecedented levels of torque density, power efficiency, and rotational precision. As a premier China Top Gear Reducers Manufacturer & Factory, our engineering organization bridges the gap between high-volume manufacturing cost efficiency and rigorous Western quality standards (including ISO 9001:2015, ISO 13485:2016 medical component registration, and UL safety recognitions).
A gear reducer (or gearmotor assembly) is fundamentally a mechanical torque multiplier and speed transformer. By coupling an electric motor—whether an AC Shaded Pole, Permanent Split Capacitor (PSC), Permanent Magnet DC (PMDC), Brushless DC (BLDC), or Hybrid Stepper—to an optimized gear head (parallel shaft, planetary, right-angle worm, or harmonic strain wave), engineers can precise-tune rotational velocity while magnifying continuous and peak output torque.
In high-demand applications such as commercial ice maker augers, narrow-aisle electric forklifts (2T-5T capacity), and autonomous robot arm joints, gear failure is not an option. Torque transmission efficiency ($\eta$) is governed by gear geometry, surface finish, lubrication rheology, and shaft deflection under radial and axial loads. In planetary gear systems, multiple sun-and-planet gear mesh points distribute mechanical loads symmetrically, enabling continuous operational torque ratings exceeding 95% efficiency per reduction stage.
Furthermore, fractional horsepower (FHP) gearmotors (delivering under 746 Watts or 1 HP) represent the backbone of commercial refrigeration, medical dosing pumps, and automated vending systems. Achieving whisper-quiet operation below 45 dB(A) requires micro-hobbing tooth profiles, synthetic dampening greases, and custom rotor balancing to eliminate harmonic resonance during continuous duty cycles.
From micro-drives to heavy vehicle traction reducers, our custom manufacturing capabilities cover the entire spectrum of rotational motion.
Engineered for high torsional stiffness and ultra-low backlash (<3 arc-min). Ideal for robotic positioning, CNC automation, and medical imaging apparatus requiring compact coaxial power transmission.
Integrating strain-wave flexspline tech with dual inductive encoders and CAN FD protocols. Delivers zero-backlash torque output for humanoid AI limbs and articulated cobots.

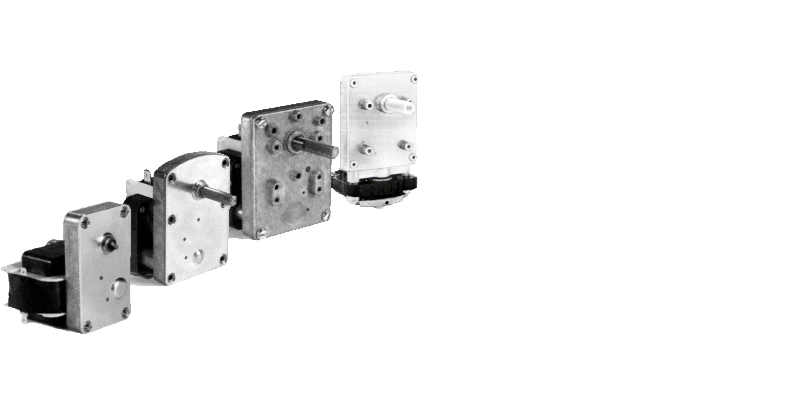

AC Shaded Pole, PSC, and BLDC parallel-shaft assemblies. Optimized for commercial appliance augers, ice makers, HVAC dampers, and automated fluid management.
High-torque reduction gearboxes for electric forklifts (2T-5T), low-speed passenger EVs, and EPA-compliant micro excavators. Engineered for harsh load spikes.
Aluminum motor housings and gear cases machined to ±0.01mm tolerances. Designed for optimal heat dissipation, structural rigidity, and IP67 washdown compliance.
Hybrid stepper motors combined with high-ratio planetary gearheads for open-loop positioning, accurate dosing valves, and precise medical diagnostic instrumentation.
Global procurement directors and engineering executives face shifting dynamics in supply chain resilience, energy efficiency directives, and mechanical integration. Sourcing gear reducers from leading Chinese OEM factories has evolved from basic cost reduction to strategic collaborative engineering.
Standalone gearboxes are rapidly giving way to integrated mechatronic smart actuators. Modern robotic applications—such as humanoid AI joints (featuring products like the DM-JH11)—require gear reducers to be tightly integrated with BLDC frameless motors, magnetic or inductive absolute encoders, and high-speed communication buses (CAN FD, EtherCAT). Procurement teams must evaluate vendors on their digital integration and PCB surface-mount assembly capabilities.
Industrial components are increasingly migrating into regulated health tech, surgical robotics, and pharmaceutical automation. Sourcing partners must maintain verified quality systems. Facilities certified to ISO 13485:2016 provide full material traceability, cleanroom assembly options, and change-control protocols required by healthcare OEMs worldwide.
With global sustainability mandates, equipment manufacturers across micro-mobility (e-bikes, e-scooters), material handling (electric forklifts), and compact agricultural machinery (1-3.5 Ton micro excavators) demand compact gearboxes that increase system efficiency. Utilizing custom tooth helical gear sets, synthetic fluid lubrication, and lightweight aluminum EV casings (±0.01mm tolerance) allows OEMs to extend battery operational range by up to 18%.
Select the optimal motor and gear reducer technology based on mechanical dynamics, electrical power source, and operational duty cycle.
| Technology Platform | Voltage / Power Range | Backlash & Precision | Peak Efficiency | Primary Application Benchmark |
|---|---|---|---|---|
| Planetary Gearmotors (BLDC) | 12V – 48V DC / 50W – 3KW | < 5 – 12 Arc-Min | 88% – 95% | AGVs, Medical Automation, Robotics |
| Harmonic Joint Actuators | 24V – 48V DC / 100W – 1.5KW | < 1 Arc-Min (Zero Backlash) | 75% – 85% | Humanoid AI Arm Joints, Cobot Articulation |
| AC Permanent Split Cap (PSC) | 115V / 230V AC, 50/60Hz | Standard Commercial Spur | 65% – 78% | Refrigeration, Ice Makers, Vending Drives |
| AC Shaded Pole Gearmotors | 115V / 230V AC, 50/60Hz | Standard Commercial Spur | 35% – 50% | HVAC Dampers, Timers, Low-Duty Augers |
| PMDC Right Angle Gearheads | 12V – 36V DC / 20W – 500W | Self-Locking Worm Options | 60% – 82% | Battery Equipment, Mobility Chairs, Conveyors |
| Heavy EV Drive Transmissions | 48V – 310V DC / 3KW – 15KW | High-Toughness Precision Helical | 92% – 97% | Electric Forklifts (2T-5T), Micro EVs, Excavators |
As a leading Chinese gear reducer manufacturer, our facility integrates complete vertically managed production under one roof: custom coil winding, CNC rotor turning, precision gear hobbing, heat treatment, ultrasonic washing, housing machining, and automated dynamometer testing.
Every non-standard gear reducer project follows a rigorous APQP (Advanced Product Quality Planning) design path to guarantee field reliability:
Analysis of continuous torque, shock loads, overhung radial force, duty cycles, ambient thermal limits, and target service life hours.
AGMA/DIN tooth profile synthesis, contact stress modeling, material selection (carburized alloy steel, bronze, synthetic polymer gears).
Rapid CNC prototyping, back-to-back load testing, efficiency mapping, acoustic sound chamber verification, and thermal rise checks.
Whether modifying motor windings for global line voltages (115V/230V/310V), engineering custom D-cut or splined output shafts, incorporating thermal protection switches, or developing specialized washdown gear seals, our engineering staff collaborates directly with your technical team.
Get expert answers to technical, operational, and supply chain queries regarding gear reducer manufacturing and custom sourcing.
To accurately size and engineer a custom gear reducer, our application engineering team requires:
Our zero-backlash harmonic joint motors (such as the DM-JH11 series) utilize precision strain-wave gearing coupled with dual inductive encoders. Each flexspline and circular spline set is manufactured under micro-level CNC gear hobbing and subjected to optical laser measurement. Post-assembly, 100% of actuators are benchmarked on dynamic test stands to verify hysteresis loss below 1 arc-minute under rated load.
Our manufacturing operations strictly adhere to certified quality management standards, including ISO 9001:2015 for industrial production stability and ISO 13485:2016 for medical device component fabrication. Selected motor series carry UL recognition, CE marks, and EPA emissions compliance for micro-excavator engine packages.
Yes. We operate multi-axis CNC machining centers capable of producing custom aluminum EV motor casings, traction motor housings, and gear covers with tolerances up to ±0.01mm. We offer complete surface treatments including anodizing, powder coating, and salt-spray resistant anti-corrosion coatings.
Standard prototype samples (utilizing existing gear ratios and winding modifications) are delivered within 2 to 3 weeks. Full custom OEM designs (requiring new gear tooling or custom die-cast housings) take approximately 4 to 6 weeks. Mass production shipment cycles range from 3 to 5 weeks depending on order volume and shipping logistics.
Consult with our senior transmission engineers today for custom gear reducer sizing, CAD drawing requests, sample prototyping, and factory-direct volume pricing.
