High-torque open-loop stepper drives and integrated planetary/spur gearmotors engineered for medical, diagnostic, and precision industrial automation.
Precision Motion Engineering
When OEM system designers demand accurate incremental positioning, predictable open-loop torque, and maintenance-free reliability, Molon Motor & Coil Corporation provides customized Stepper Motors and Stepper Gearmotors tailored specifically for production programs.
Combining over seven decades of motor manufacturing expertise with ISO 9001:2015 and ISO 13485:2016 (Medical Devices) certified quality systems, Molon engineers design stepper drives that deliver high torque density, accurate step angles, and quiet gear reduction under severe environmental conditions.

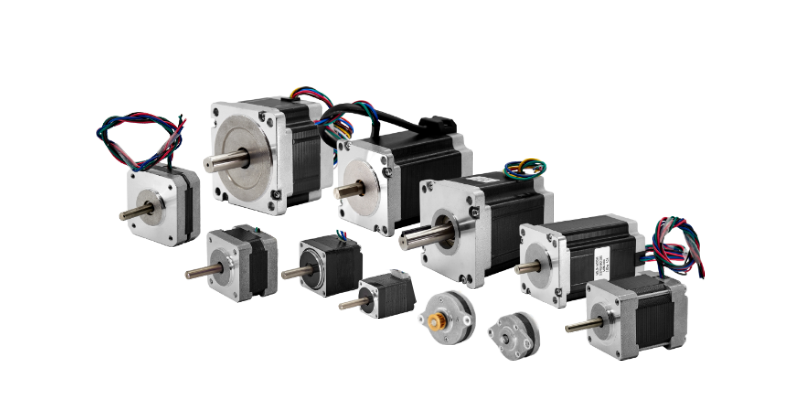

Compact, high-holding-torque open-loop actuators designed for precise speed control, microstepping compatibility, and positioning applications.

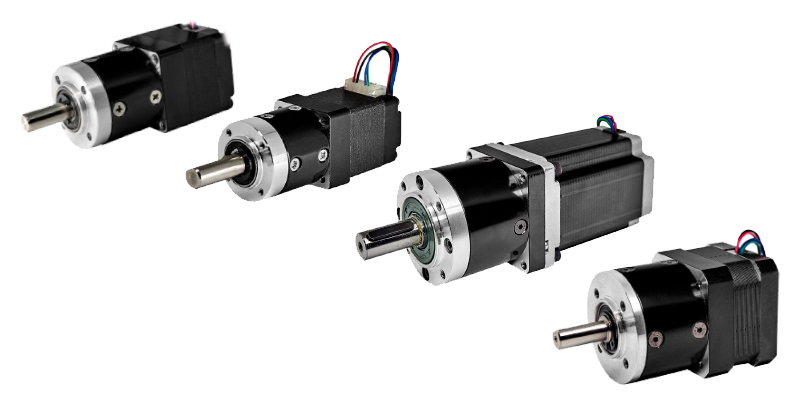

Integrated gearhead assemblies designed to amplify motor output torque, eliminate mechanical resonance, and optimize load inertia matching.
Molon customizes stepper motors and gearhead platforms around your exact mechanical envelope, thermal limits, and electrical drive profiles. Below is an overview of our standard engineered capabilities for OEM buyers:
| Platform Feature | Hybrid Stepper Motors | Planetary Stepper Gearmotors | Spur Stepper Gearmotors |
|---|---|---|---|
| Step Angle Accuracy | ±5% (non-accumulative) | Resolution multiplied by gear ratio | Resolution multiplied by gear ratio |
| Gearhead Efficiency | N/A (Direct Drive) | 75% – 90% (Multi-stage dependent) | 80% – 95% |
| Backlash Range | Direct coupling | 1.0° – 2.5° (Precision option <45 arcmin) | 1.5° – 3.0° |
| Bearing Configurations | Double shielded ball bearings | Heavy-duty needle & ball bearings | Sintered bronze sleeve or ball bearings |
| Customization Options | Custom D-shafts, helical pinions, lead screws, custom harness/connectors, optical encoders, magnetic brakes, thermal cutouts, food-grade/low-temp lubricants. | ||
Designing positioning drives for automated medical equipment, diagnostic analyzers, or commercial dispensing hardware requires strict consistency from lot to lot. Molon delivers measurable advantages for international procurement managers and project engineers:
Registered quality system handling risk management, design verification, and complete component traceability for medical device applications.
We control winding patterns, lamination stamping, gear hobbing, and final assembly in Illinois, ensuring total revision control and repeatable quality.
Rather than adding aftermarket gearboxes, our gearheads are integrally designed to handle axial thrust and overhung radial loads efficiently.
Molon stepper gearmotors are deployed worldwide inside mission-critical OEM equipment where performance failure is not an option:
Technical insight from Molon's motion engineering team to help you specify the right stepper drive.
Adding a planetary or spur gearhead increases output torque by the gear ratio while reducing the inertia ratio between load and motor shaft. It allows a smaller motor frame to drive heavy loads at lower RPMs while dampening mid-range resonance and enhancing mechanical step resolution.
Choose Planetary Gearheads when high torque density, inline concentric output shafting, high radial/axial load capacity, and minimal backlash are required. Choose Spur Gearheads for economical, quiet offset driving in cost-sensitive applications with lighter radial loads.
Yes. We customize resistance, inductance, wire gauge, lead wire length, sleeve jacketing, molex/AMP/JST connectors, optical encoders, and thermal cutout switches directly according to your schematic and drawing specifications.
Our quality system is certified to ISO 13485:2016. We offer full component traceability, statistical process control (SPC), design validation documentation, first-article inspection (FAI), and PPAP packages for medical, diagnostic, and life-science applications.
Submit your speed, holding torque, supply voltage, step angle, and dimensional parameters to our engineering team for expert selection and custom prototype sampling.
