Specialized OEM Motion Solutions
Standard catalog motors often reach their technical limits when confronted with unique mounting dimensions, high thermal stress, high-torque startup requirements, or strict acoustic limits. Molon Motor & Coil Corporation designs and builds custom specialty motors and gearmotors engineered specifically around complex OEM drawings and operating parameters.
Since 1954, Molon's US-based engineering team has designed specialized electric drives for severe environments, including ice-making augers, commercial refrigeration, medical fluid dosing, automated vending systems, and commercial food equipment. Internal control over coil winding, gear teeth cutting, housing die-casting, and functional testing ensures that every specialty drive meets demanding performance standards and unit-to-unit consistency.
Explore our engineered platforms designed for severe duty, legacy equipment upgrades, and non-standard operating conditions:

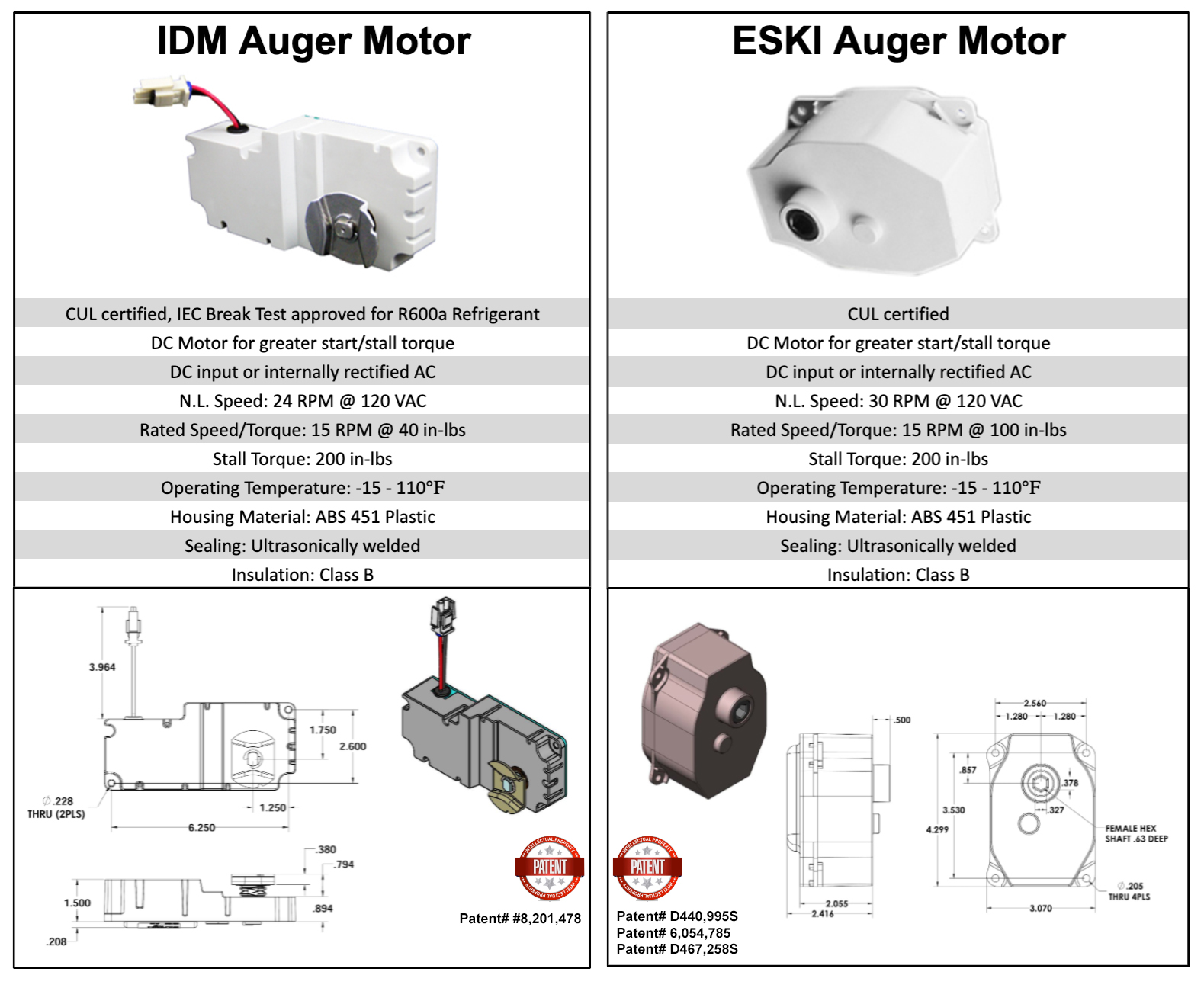

Engineered for continuous ice flaking, crushing, and auger dispensing applications. Built with heavy-duty heat-treated gearing and sealed lubrication to handle severe mechanical backlash and continuous ice load resistance.

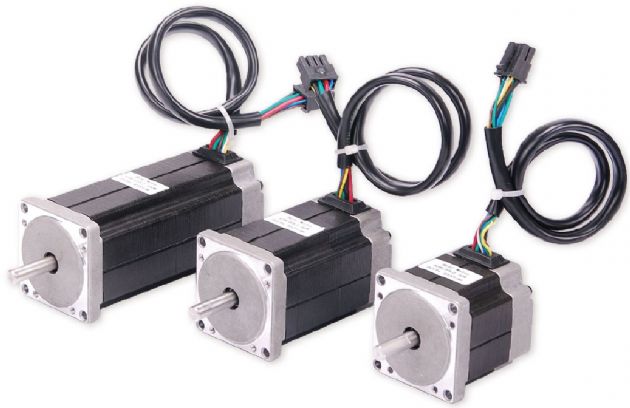

Brushless DC specialty platforms designed for applications demanding high energy efficiency, long bearing life, variable speed control, and reduced EMI output over extended operational duty cycles.

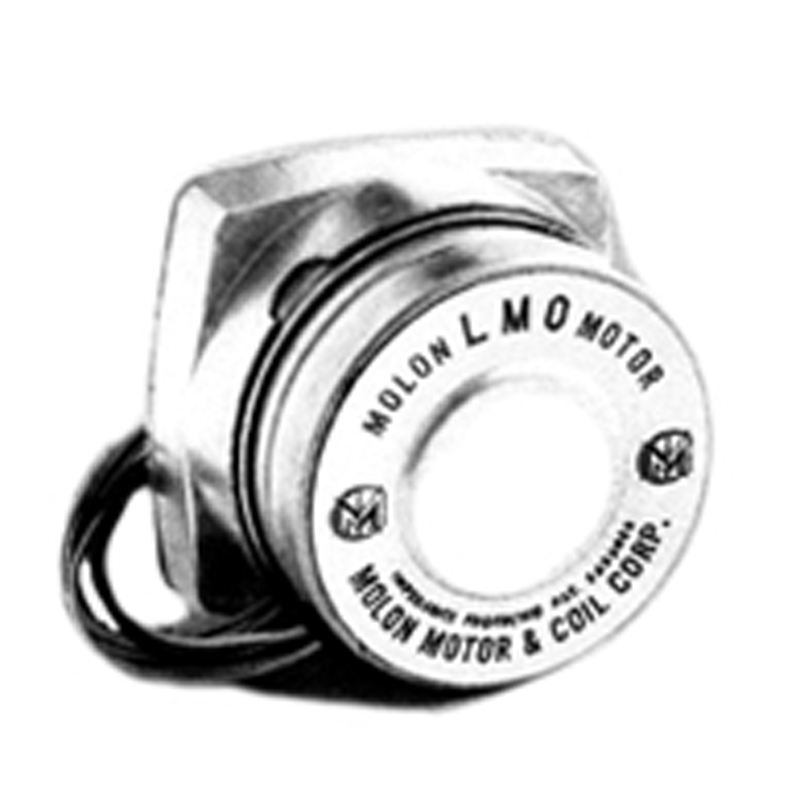

Precision indexing gearmotors tailored for constant speed irrespective of load fluctuations or open-loop discrete positioning. Provides high holding torque for metering, valve control, and dispensing systems.

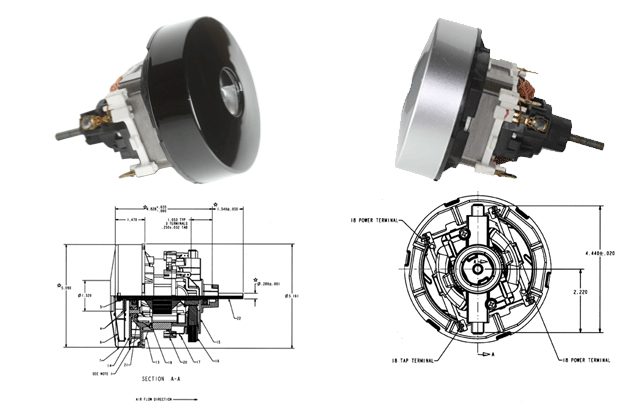

High-speed, high-output AC/DC universal motors built for applications requiring heavy startup torque in a lightweight frame, such as commercial grinders, pumps, and processing equipment.
The technical parameters below outline the general performance limits of Molon specialty motor platforms. Custom engineering options are applied based on customer drawings.
| Motor Category | Input Power / Voltage | Output Torque Range | Primary Advantages | Typical OEM Applications |
|---|---|---|---|---|
| Auger Gearmotors | 115 / 230 VAC, 50/60 Hz | Up to 300 in-lbs | Extreme torque, shock load resistance, sealed lubrication | Commercial ice makers, food dispensing, augers |
| Legacy BLDC Motors | 12, 24, 48 VDC | 0.5 Nm – 4.5 Nm | High energy efficiency, maintenance-free continuous duty | Medical pumps, HVAC actuators, battery equipment |
| Synchronous & Stepper | 12 – 24 VDC / Line VAC | Up to 150 in-lbs | Exact speed holding, precise positioning, holding torque | Fluid metering, peristaltic pumps, lab automation |
| Universal Motors | 120 / 230 VAC, DC | High peak torque | High speed capability, high power density per frame size | Commercial food processing, power drives, valves |
Every specialty motor program can be customized with specific engineering features, including custom mounting plates, D-cut or splined output shafts, special lead lengths and sealed harness connectors, high-temperature wire insulation (Class F/H), food-grade NSF lubricants, Hall effect speed encoders, and custom UL insulation systems.
We wind coils and punch laminations in our US facilities, enabling rapid modification of motor torque-speed curves without long lead times.
Traceable manufacturing processes, strict change-control procedures, and documented batch inspection for medical and commercial applications.
Every specialty design undergoes thermal rise evaluation, dielectric hipot testing, audible noise check, and load endurance testing prior to production release.
A Molon specialty motor is a fractional horsepower motor or gearmotor engineered specifically to solve application challenges that off-the-shelf catalog motors cannot handle—such as space constraints, high thermal ambient temperatures, unique duty cycles, or high torque output requirements.
Yes. Most OEM projects begin with a baseline platform (shaded pole, PSC, BLDC, or stepper) and are customized by shaft geometry, gear ratio, lead wires, connectors, thermal protection, and mounting brackets to fit your exact engineering drawings.
Molon operates quality management systems certified to ISO 9001:2015 and ISO 13485:2016 for medical devices. Components are engineered with UL recognition and compliant with international electrical safety standards.
You can provide required operating torque, speed (RPM), operating voltage, duty cycle, ambient operating temperature, and envelope dimensions. Our application engineers in Illinois will review your load requirement and recommend an optimized specialty motor design.
Provide your speed, torque, operating duty, and mechanical envelope requirements. Our engineering team will review your application and present a validated custom solution.
