Fractional Horsepower DC Motion Platforms
Molon Motor & Coil Corporation designs, engineers, and manufactures heavy-duty Fractional Horsepower (FHP) DC Motors and Gearmotors engineered specifically for medium- to high-volume OEM programs worldwide. Operating from our ISO 9001:2015 and ISO 13485:2016 certified facilities in Illinois, USA, we provide complete motion control solutions including high-performance Brushless DC (BLDC) and cost-effective Permanent Magnet DC (PMDC) platforms matched with custom parallel shaft, planetary, and right-angle gearheads.
When off-the-shelf catalog gearmotors compromise system life or electrical performance, global procurement teams and OEM design engineers rely on Molon's application-first approach. Our engineering team works directly from your operating environment, torque curves, acoustic limits, and thermal envelopes to deliver validated gearheads with absolute unit-to-unit repeatability.
Explore our optimized fractional horsepower DC drive series engineered for maximum power density, low EMI signature, and long service life.

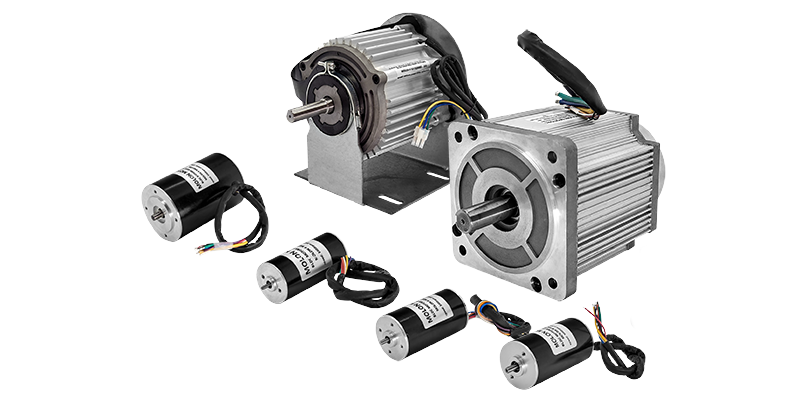

High-efficiency brushless DC motors delivering exceptional speed stability, maintenance-free continuous operation, and ultra-low electro-magnetic interference (EMI/RFI).

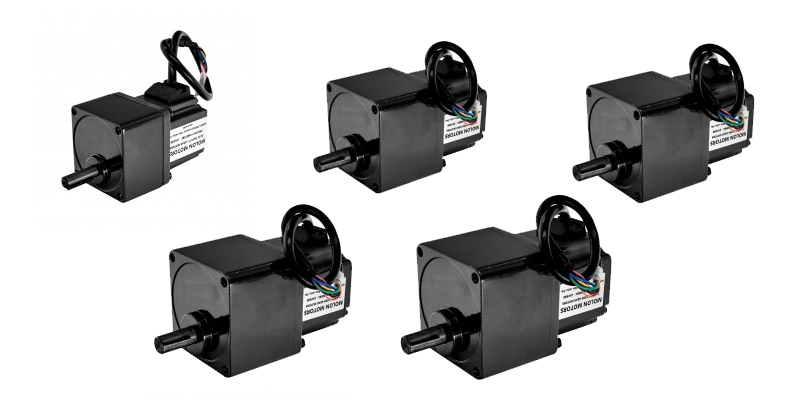

Compact parallel shaft configuration combining brushless motor efficiency with high-precision spur or helical gears for consistent velocity control under varying loads.

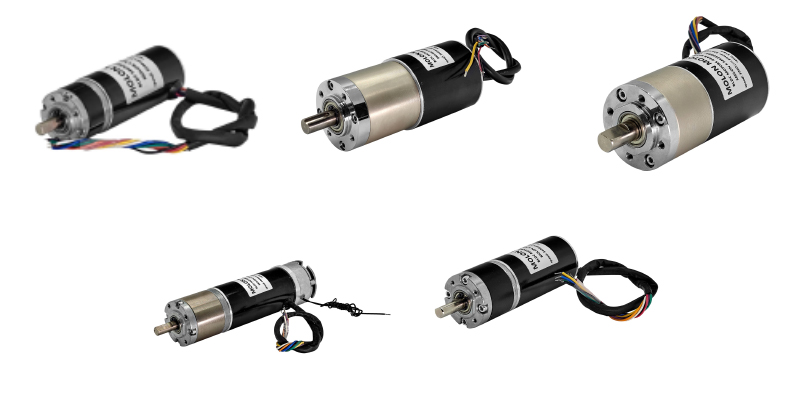

Coaxial planetary gearheads designed for extreme shock-load endurance, ultra-low backlash, and high torque transfer in demanding tight radial space envelopes.

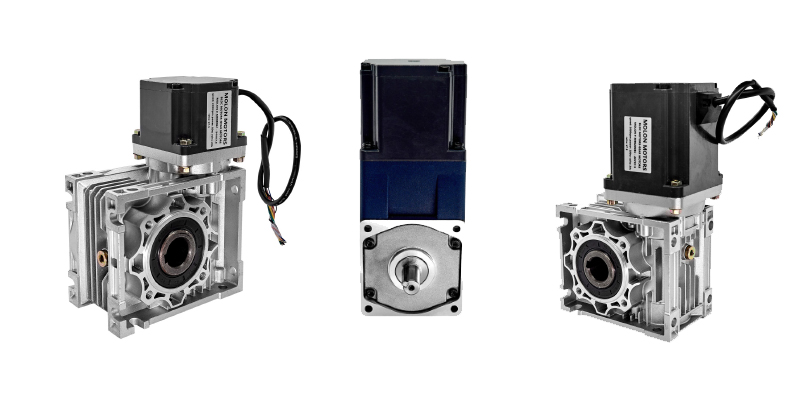

Space-saving 90-degree right-angle drive units featuring brushless reliability and high holding torque, ideally suited for compact equipment cabinetry.

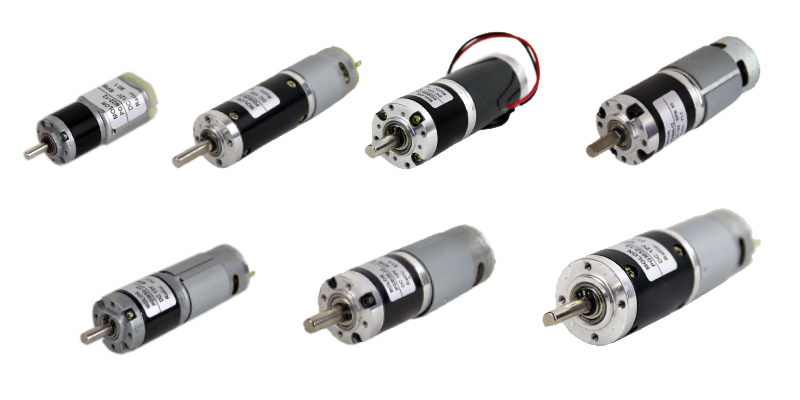

High starting torque brushed PMDC motors paired with multi-stage planetary gearboxes, balancing project cost efficiency with rugged dynamic torque output.

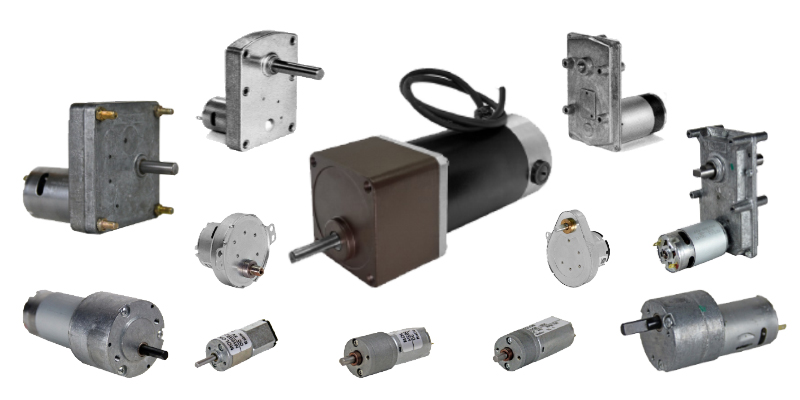

Versatile brushed DC parallel shaft drives featuring field-replaceable options, custom shaft geometry, and dependable continuous-duty performance.

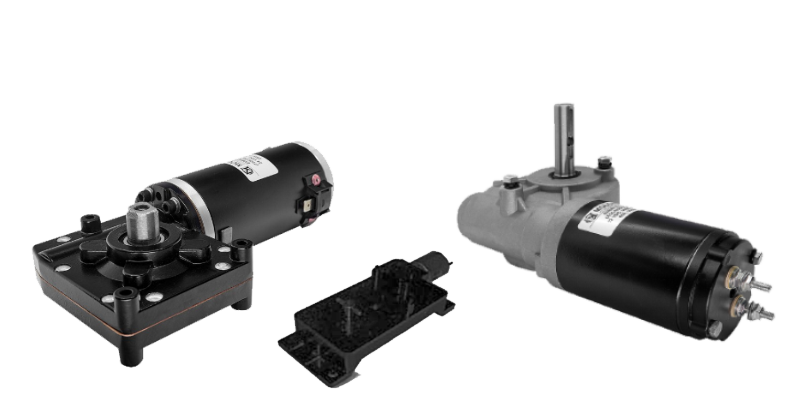

Rugged PMDC motors fitted to right-angle speed reducers, providing budget-friendly 90-degree mechanical transmission for medium load profiles.
Compare key engineering characteristics across Brushless DC and Permanent Magnet DC drive technologies to identify the optimal platform for your OEM application.
| Performance Parameter | Brushless DC (BLDC) | PMDC (Brushed) | BLDC Planetary | PMDC Right Angle |
|---|---|---|---|---|
| Input Voltage Range | 12 – 48 VDC | 12 – 90 VDC | 12 – 48 VDC | 12 – 90 VDC |
| Operational Lifespan | Ultra Long (>20,000 hrs) | Moderate (Brush-limited) | Ultra Long (>20,000 hrs) | Moderate (Brush/Gear wear) |
| Speed Control Dynamics | Precision closed-loop PWM | Variable voltage control | Precision servo / step PWM | Simple voltage reduction |
| Acoustic & EMI Noise | Ultra Low (No sparking) | Standard brush ripple | Low acoustic signature | Low-to-moderate noise |
| Torque Density Rating | High | Moderate | Maximum Torsional Output | Moderate / Self-locking |
| Ideal OEM Applications | Medical pumps, robotics | Dispensing, appliances | Precision indexing, heavy duty | Right-angle space constraints |
Every Molon DC gearmotor platform can be customized to match your exacting engineering drawings and environmental conditions. Our in-house manufacturing capabilities include:
From initial rapid prototyping to full-scale automated production, Molon provides transparent engineering, internal tooling control, and strict ISO compliance.
Complete lot traceability, documented first-article inspection, and full PPAP compliance for medical device and industrial safety standards.
Internal stator/armature coil winding and gearbox assembly ensure tight quality oversight and flexible OEM batch scheduling.
Speak directly with seasoned American motor engineers to calculate radial loads, thermal rise, and duty-cycle safety margins.
Premium synthetic lubricants, precision-ground shafts, and hardened gear materials designed for continuous uninterrupted duty.
Fast-track sample manufacturing and dynamic load testing to accelerate your product development cycle and market launch.
Established international shipping networks serving OEM production facilities across North America, Europe, and Asia.
Technical guidance and selection answers provided by Molon application engineering specialists.
Brushless DC (BLDC) gearmotors eliminate internal carbon brushes, resulting in significantly extended service life (frequently exceeding 20,000 hours of continuous operation), zero electrical brush sparking, minimal electromagnetic interference (EMI/RFI), higher thermal efficiency, and superior speed-torque control dynamics across wide speed ranges.
Parallel shaft gearheads offer high mechanical efficiency and a flat housing profile ideal for standard industrial loads. Planetary gearheads provide the highest output torque density, superior resistance to sudden shock loads, and concentric shaft placement in tight radial spaces. Right-angle gearheads are optimal for tight spatial envelopes requiring a 90-degree shaft output turn.
Yes. The majority of Molon production gearmotors are customized to specific OEM engineering specifications. We tailor armature windings (12V, 24V, 48V, 90V DC), output shaft dimensions (D-flats, keyways, helical pinions), mounting flanges, wire harness connectors, integrated feedback devices, and thermal protective cutouts.
Molon facilities operate under registered ISO 9001:2015 and ISO 13485:2016 quality management systems. We provide material declarations (RoHS/REACH), UL recognition credentials, dimensional inspection reports, and formal PPAP documentation upon request.
Share your target speed, torque, operating voltage, and envelope requirements with our engineering team to receive an optimized drive proposal and official specification sheet.
