Engineered for screening, conveying, material agitation, micro-haptics, and therapeutic massagers. Built under rigorous ISO 9001:2015 & ISO 13485 production standards.
The global market for electromechanical vibration drives, haptic feedback actuators, and rotary vibrators is experiencing a profound technological conversion. As Original Equipment Manufacturers (OEMs) across industrial processing, consumer electronics, medical diagnostics, and automotive haptics seek higher power density, lower thermal dissipation, and precise centrifugal force delivery, China's manufacturing ecosystem has transformed from low-cost mass production into a hub for high-precision, custom-engineered motor technology.
Centrifugal force accuracy relies entirely on eccentric weight dynamic symmetry. Top-tier Chinese exporters utilize automated dynamic balancing equipment to keep residual imbalance under 0.2 g·mm/kg, dramatically extending bearing lifespan under severe S1 continuous duty cycles.
Utilizing Class H (180°C) and Class F (155°C) high-grade copper windings vacuum-impregnated with synthetic epoxy resin. Coupled with IP66/IP69K heavy-duty cast housings, these units resist extreme dust, high-pressure washdowns, and corrosive processing environments.
Transitioning from traditional Eccentric Rotating Mass (ERM) to linear motion X-axis Linear Resonant Actuators (LRAs). Modern Chinese vibration foundries yield sub-10ms response times and sub-5ms fall times, critical for next-gen VR/AR spatial feedback and medical interface units.
| Motor Architecture Category | Voltage & Frequency Standard | Centrifugal Force / G-Output | Insulation & Protection Class | Target B2B Application Field |
|---|---|---|---|---|

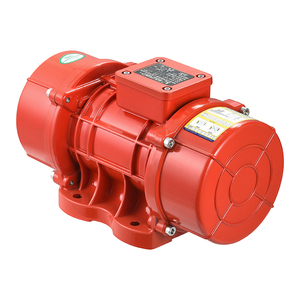

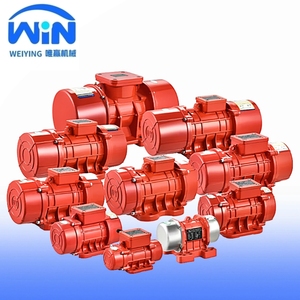

| Industrial 3-Phase AC Vibrator (YZS/MVE) | 220V/380V/415V, 50/60Hz | 0.1 kN to 120 kN (Adjustable) | Class F / IP66 Dust-Tight & Jet-Proof | Rotary Vibrating Screens, Mining Feeders, Concrete Block Machines |

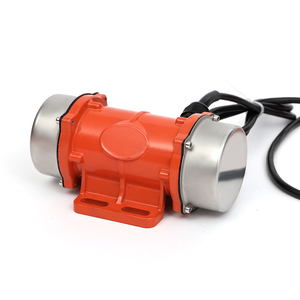

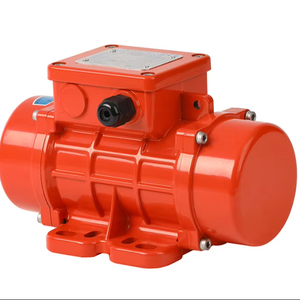

| Single-Phase Mini AC Vibrators | 110V/220V AC, 50/60Hz | 0.05 kN to 3.5 kN | Class B/F / IP65 | Small Material Hoppers, Sieve Machines, Automated Powder Feeders |

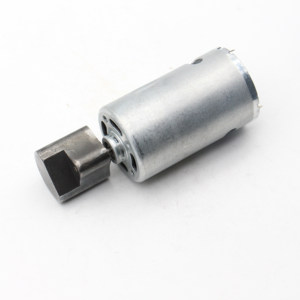

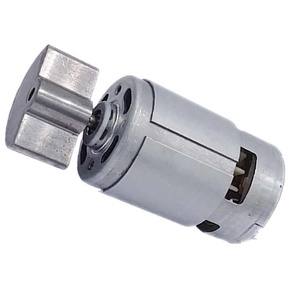

| Precision DC Micro Brushed (565SH/775) | 3.7V - 24V DC | High Torque Unbalanced Mass | Standard Sealed / Internal Fan Cooled | Therapeutic Massagers, Fitness Yoga Columns, Commercial seats |

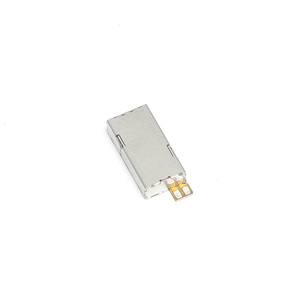

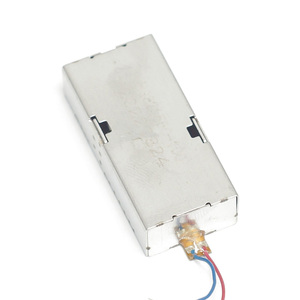

| Linear Resonant Actuators (LRA / X-LRA) | 2.0V - 5.66V Vp-p (AC Sine/Square) | 1.5 Grms to 4.2 Grms Peak | Hermetically Sealed Stainless Steel | AR/VR Controllers, Gaming Haptics, Precision Medical Interfaces |
Procurement teams and OEM engineering directors are navigating key structural shifts when sourcing vibration motors from Chinese export hubs:
Strategic Insight: Evaluating Chinese suppliers now requires moving beyond FOB pricing to review rotor dynamic balancing certifications, automated winding precision, and thermal rise test records under simulated maximum g-force loads.
Modern industrial vibrator motors feature dual-ended eccentric weights with laser-etched angular dials. By varying the relative displacement angle between the fixed and adjustable eccentric discs, plant engineers can precisely tune the output centrifugal force from 0% to 100% without altering motor electrical frequencies.
In consumer and medical UI applications, narrow-band LRAs are being replaced by wideband, dual-frequency X-axis linear actuators. These units deliver distinct sensory tactile clicks, continuous vibrations, and low-frequency pulses, powered by advanced haptic driver IC algorithms.
For chemical processing, pharmaceutical sifting, and food-grade washdown applications, leading Chinese exporters utilize electro-polished stainless steel housing or triple-coat polyurethane epoxy finishes, backed by double-lip fluororubber oil seals to prevent lubricant contamination.
Combining decades of electromechanical engineering heritage with modern vertically integrated manufacturing processes ensures uncompromised quality from winding to final assembly.
Every vibration motor production cycle starts as a precise application review rather than a generic off-the-shelf part selection. From raw copper wire breakdown and automated stator bobbin winding to precision casting, shaft grinding, and dynamic balancing, end-to-end control guarantees zero defect escape rates.
In-house testing equipment includes:
Speak directly with our senior application engineering team to obtain CAD drawings, custom winding calculations, and volume OEM quotations tailored to your exact project parameters.
