As part of our comprehensive market audit, we evaluate high-precision micro motors engineered for mission-critical OEM applications. Below are eight top-tier precision drive components representing state-of-the-art electromechanical design across direct-drive linear systems, high-torque brushless DC planetary gearheads, sub-miniature reduction assemblies, and high-frequency EV traction housings.
The global fractional horsepower (FHP) and micro motor market is experiencing unprecedented demand driven by industrial automation, medical robotics, electric vehicle sub-systems, and smart IoT actuators. According to industrial procurement benchmarks, global demand for sub-fractional drive systems is projected to exceed $42.8 Billion by 2030, maintaining a robust Compound Annual Growth Rate (CAGR) of 6.8%.
Navigating the international motor supply chain requires rigorous supplier auditing. Procurement directors and engineering leads must look beyond basic unit pricing to evaluate full life-cycle reliability, thermal performance under continuous duty, and strict adherence to quality management systems. Our engineering panel conducted a multi-tier evaluation of international factories based on five crucial technical pillars:
Leading exporters maintain in-house stator winding, automated armature balancing, gear hobbing, and toolmaking. Premier manufacturers—such as Molon Motor & Coil Corporation (built on an American heritage since 1954 in Illinois)—demonstrate superior quality control by executing winding, stamping, and testing operations under one roof.
Strict compliance with ISO 9001:2015 is standard, but top-tier factories supplying medical surgical devices, IV pumps, or lab automation must operate certified cleanrooms backed by ISO 13485:2016 regulations and UL-recognized component insulation systems.
A true OEM partner does not merely sell off-the-shelf items. They modify wire gauge (AWG), turn counts, magnetic material selection (Neodymium N42/N52H vs Samarium Cobalt), shaft geometry, right-angle / planetary gear trains, and custom mounting flanges.
Micro motors operating in optical, surgical, or residential IoT setups demand ultra-low mechanical noise (<35 dB) and tight dynamic balancing to eliminate resonance in miniature circulation pumps and precision drive trains.
As global OEMs prepare for 2026–2032 supply chain cycles, the micro motor industry is undergoing a structural transition. Engineering leads must realign sourcing specifications to capitalize on three transformative design shifts:
Eliminating iron cores in sub-miniature DC motors completely removes cogging torque. This yields smooth velocity profiles, extreme acceleration (high torque-to-inertia ratio), and efficiency exceeding 88–92% in ultra-compact form factors like 10mm–12mm planetary drives.
The line between motor and servo controller is blurring. Modern brushless DC micro motors incorporate embedded Hall sensors, magnetic encoders, and miniaturized CANopen / EtherCAT drive boards directly on the rear end-bell, cutting wiring complexity by up to 60%.
Demand for high-efficiency electric vehicle traction actuators and robotic end-effectors has boosted the adoption of precision CNC machined aluminum casings (holding ±0.01mm tolerances) and PEEK synthetic gearings for maximum thermal dissipation and weight reduction.
Use this engineering reference matrix to evaluate motion platforms against core operational parameters during the early phase of OEM application design:
| Technology Platform | Typical Voltage Range | Speed / Torque Characteristic | Efficiency Range | Target Application Areas |
|---|---|---|---|---|

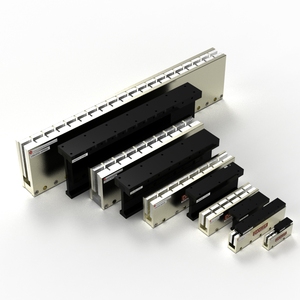

| Coreless Linear Direct Drive | 5V – 48V DC | High dynamic speed, zero cogging, linear motion | 85% – 92% | Semiconductor pick-and-place, optical alignment, bio-tech automation |

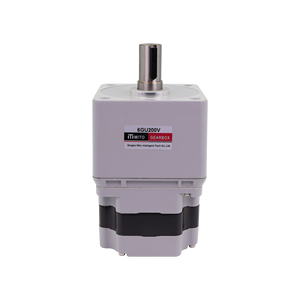

| Brushless DC (BLDC) Gearmotor | 12V – 310V DC / AC | Variable speed control, extreme continuous torque | 80% – 90% | Robotics, industrial automation, medical pumps, AGVs |

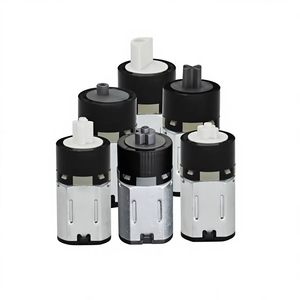

| Micro Metal Planetary DC Motor | 3V – 24V DC | High reduction ratio, compact axial torque output | 65% – 78% | Smart locks, shared power banks, mobile wireless chargers |
| PMDC Right Angle / Parallel Gearmotor | 12V – 36V DC | High starting torque, compact right-angle footprint | 60% – 75% | Vending gear systems, battery equipment, commercial appliances |
| AC Permanent Split Capacitor (PSC) | 115V / 230V AC | Constant continuous duty, low noise operation | 55% – 70% | HVAC/R dampers, ice makers, commercial refrigeration augers |
With roots tracing back to 1954 in Arlington Heights and Rolling Meadows, Illinois, USA, top-tier engineering organizations like Molon Motor & Coil Corporation have established the benchmark for custom fractional horsepower and micro motor manufacturing. Operating with complete vertical integration, advanced factory floors feature state-of-the-art winding equipment, automated gear assembly, and dynamometer-backed quality validation.
Every custom motor program begins with comprehensive application review: analyzing duty cycles, overhung loads, ambient operating temperatures, and noise thresholds. Engineers engineer custom windings, select high-grade steel laminations, and design bespoke mounting brackets to ensure drop-in replacement or seamless OEM integration.
To maintain zero-defect field performance across global supply networks, production units undergo 100% functional end-of-line electrical testing, thermal rise measurement, dynamic torque-speed curve mapping, and noise spectrum analysis prior to packaging and release.
Below are technical solutions to common procurement and engineering questions encountered when sourcing micro motors, gearheads, and motor casings for high-volume manufacturing:
A fractional horsepower (FHP) motor is an electric motor rated at less than one horsepower (below 746 Watts). Micro motors typically refer to sub-fractional drive systems operating below 100 Watts, often integrated with precision planetary or spur gearboxes to trade rotational speed for high usable output torque within extremely compact mechanical envelopes.
Brushless DC motors eliminate mechanical commutator brushes, removing friction, spark generation, and particulate wear. BLDC platforms deliver significantly longer operational life (often exceeding 20,000 hours based on bearing limits), higher efficiency (over 85%), superior heat dissipation (windings on stator housing), and precise closed-loop speed control ideal for continuous medical and robotic applications.
Coreless linear motors utilize a self-supporting coil structure without an iron core. This completely eliminates cogging torque and magnetic attraction forces between coil and magnet track. The result is uncompromised velocity smoothness, ultra-fast settling times, sub-micron positioning accuracy, and extreme acceleration required in high-speed semiconductor pick-and-place systems.
Increasing the gearbox reduction ratio multiplies motor output torque proportionally (minus gear efficiency losses) while reducing shaft speed. High reduction ratios (e.g., >100:1 in multi-stage planetary systems) significantly increase mechanical resistance, often making the gear train non-backdrivable, which is ideal for holding loads securely without active brake power.
Medical micro motors require manufacturing under an ISO 13485:2016 quality system. In addition, components must comply with UL recognized insulation systems, RoHS and REACH chemical regulations, low EMI/EMC radiation profiles (EN 60601-1-2), and biocompatibility standard materials where motors contact fluid pathways or surgical handpieces.
Yes. OEM exporters regularly customize D-cut shafts, cross-holes, keyways, splines, and lead lengths, as well as applying specific termination connectors (Molex, JST, AMP). Custom windings can also be designed for specific supply voltages (e.g., 5V, 12V, 24V, 48V, or 220V continuous line power).
Precision CNC machining to ±0.01mm guarantees exact concentricity between stator laminations, rotor bearings, and output shafts. In high-RPM electric vehicle traction motors and auxiliary actuators, tight mechanical tolerances eliminate air-gap non-uniformity, preventing magnetic imbalance, acoustic whine, radial vibration, and premature bearing fatigue.
You can instantly initiate an inquiry and request detailed engineering catalogs, CAD drawings, and performance curves by clicking the "Get Catalog" interactive call-to-action buttons positioned next to each product module throughout this technical report.
Access full technical spec sheets, custom torque curves, 3D STEP models, and volume factory pricing for all fractional horsepower micro motors and gearheads.
