Explore our custom-engineered gearmotor platforms built for medical, industrial, commercial, and high-duty OEM machinery. All units undergo 100% dynamometer and acoustic testing.

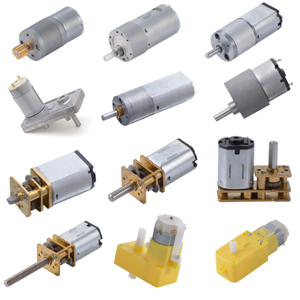

Voltage: 3V - 48V DC
Type: Micro Planetary Gearing
Customization: Winding, Shaft, Shaft Flats

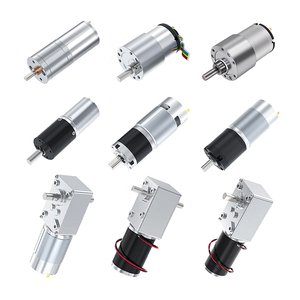

Voltage: 12V / 24V DC
Gearing: High-Reduction Worm Gear
Control: Integrated Speed Driver

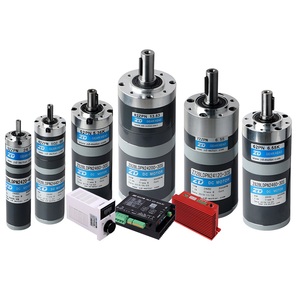

Power Range: 10W - 300W
Diameter: 32mm to 82mm
Feature: Electromagnetic Holding Brake
Frame Size: NEMA 34 Compatible
Ratio: 3:1 up to 512:1 Multi-stage
Application: Industrial Automation

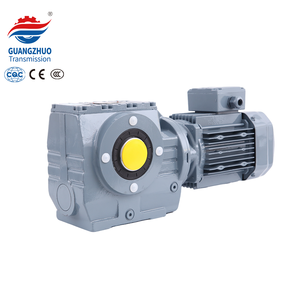

Architecture: Right Angle Helical-Worm
Efficiency: High Back-drive Resistance
Operation: Ultra-Quiet Continuous Duty
Gear Strength: Hardened Alloy Steel
Duty Cycle: 24/7 Continuous Operation
Industry: Spinning & Textile Equipment

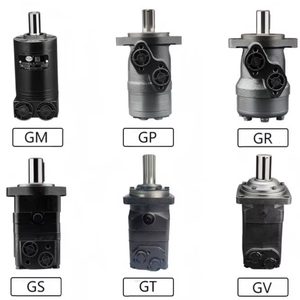

Displacement: 12 cm³/rev
Torque: 50 Nm Continuous
Max Pressure: 3000 PSI / 207 Bar
Compliance: ISO 13485 Registered Process
Backlash: Low Backlash Precision Gearing
Application: Medical Diagnostics & Dosing
Since 1954, Molon Motor & Coil Corporation has pioneered customized fractional horsepower (FHP) motors and gearmotors for demanding high-volume OEM programs. Unlike catalog distributors who supply off-the-shelf components, we engineer motion solutions directly around your torque demands, radial and axial shaft loads, duty cycles, and environmental constraints.
With vertically integrated manufacturing—including automated coil winding, micro-planetary tooth profiling, precision hobbing, rotor balancing, and automated grease dispensing—we eliminate supply chain friction and deliver application-matched performance for medical pumps, commercial ice machines, HVAC dampers, and robotics.
Selecting the correct motor motor technology requires evaluating torque density, speed regulation, acoustic limits, and operational life. Use our technical matrix below to align your OEM parameters.
| Motor Topology | Operating Voltage | Torque Density | Acoustic Profile | Service Life (L10) | Optimal OEM Applications |
|---|---|---|---|---|---|
| AC Shaded Pole Gearmotors | 115 / 230 VAC (50/60 Hz) | Standard | Quiet (<45 dBA) | 5,000 - 10,000 Hours | HVAC Dampers, Timers, Appliance Drives, Ice Dispensing |
| AC Permanent Split Capacitor (PSC) | 115 / 230 VAC Continuous | High Efficiency | Ultra-Quiet (<40 dBA) | 15,000+ Hours | Commercial Refrigeration, Ice Machine Augers, Medical Pumps |
| Permanent Magnet DC (PMDC) | 12V, 24V, 36V, 48V DC | High Starting Torque | Moderate (<50 dBA) | 3,000 - 8,000 Hours | Battery-Powered Mobile Gear, Agriculture, Gate Actuators |
| Brushless DC (BLDC) Planetary | 12V to 48V DC Integrated | Ultra-High Torque | Whisper Quiet (<38 dBA) | 20,000+ Hours | Surgical Instruments, Autonomous Mobile Robots (AMR), Precision Dosing |
| Hybrid Stepper Gearmotors | Pulse / Direction Driver | High Holding Torque | Low Vibration | 10,000+ Hours | Diagnostic Instrumentation, Valve Control, Peristaltic Dispensing |
| S-Series Helical-Worm Drives | AC 3-Phase / 1-Phase | Extreme Shock Resistance | Smooth Right-Angle | 25,000+ Hours | Heavy Conveyors, Spinning Machines, Industrial Automation |
Strategic analysis for OEM procurement managers, mechanical engineering directors, and supply chain executives navigation electrification, smart sensorization, and eco-design directives.
Global procurement teams are rapidly migrating away from legacy brushed DC and low-efficiency AC shaded pole topologies toward electronically commutated Brushless DC (BLDC) gearmotors. Driven by strict energy efficiency requirements (such as EU Stage V and US DOE standards), BLDC gearmotors integrated with magnetic encoders and Hall sensors allow real-time velocity monitoring, predictive maintenance alerts, and a 40% reduction in thermal signature.
For OEMs in medical diagnostics, surgical robotics, and pharmaceutical dispensing, standard ISO 9001 certification is no longer sufficient. Sourcing leaders are enforcing ISO 13485 compliance across sub-tier motion control vendors to ensure strict risk management, full material lot traceability, controlled cleanroom assembly, and validation documentation (IQ/OQ/PQ) for critical life-support and clinical gearmotor assemblies.
As equipment footprints shrink, gearhead engineering focuses on maximizing torque density within smaller envelope sizes. Advances in powder metallurgy (PM), sintered steel-alloy gear stages, and high-precision plastic-metal hybrid planetary gear trains allow 32mm and 42mm micro-gearmotors to deliver up to 50 Nm of continuous output torque while withstanding high radial and axial overhung loads.
In healthcare, high-end commercial appliances, and quiet laboratory environments, low acoustic signature is a critical purchase criterion. Custom gearmotor suppliers are leveraging computer-optimized helical tooth profiles, high-viscosity synthetic fluorinated lubricants (PFPE), and dynamic armature balancing to keep noise emissions under 38 dBA, meeting rigorous consumer and clinical acoustic targets.
Forward-thinking OEM buyers are shifting focus from initial unit purchase price to Total Cost of Ownership (TCO). High-quality gearmotors built with UL-recognized Class F/H insulation, sealed ball bearings, and hardened gear shafts reduce field failure rates below 50 PPM (Parts Per Million), preventing costly warranty claims and field service recalls in commercial equipment.
Geopolitical volatility and shipping delays have exposed the vulnerability of sole-sourced offshore vendors. Procurement strategies now prioritize regional engineering support and collaborative co-engineering. Partnering with domestic or vertically integrated gearmotor factories enables rapid prototyping within weeks, immediate engineering change order (ECO) implementation, and localized buffer stocking programs.
The demand for high-efficiency, multi-axis precision motion control is accelerating across industrial automation, AGVs (Automated Guided Vehicles), medical robotics, and automated vending systems. Modern motion system design requires a holistic engineering approach that pairs motor magnetics directly with mechanical gear reduction ratios.
Key technological breakthroughs shaping the future of gearmotor manufacturing include:
Answers to common engineering, quality, regulatory, and customization questions asked by OEM buyers and design engineers.
Consult directly with our senior application engineers to specify custom gear ratios, select motor topologies, request CAD models, or obtain competitive prototype quotes for your high-volume OEM program.
