Explore our industrial-grade geared motors, high-torque speed reducers, and customized motion drive solutions verified through rigorous dynamometer testing.
In modern electromechanical engineering, the critical challenge for Original Equipment Manufacturers (OEMs) lies in matching high-speed prime movers with low-speed, high-torque industrial applications. As a premier speed reducers manufacturer and global exporter, Molon Motor & Coil Corporation provides fractional horsepower (FHP) gearmotors, right-angle speed reducers, planetary gearheads, and customized motion control packages engineered to deliver mechanical power with optimal kinematic efficiency, low acoustic signature, and long service life.
Operating continuously since 1954 in Arlington Heights and Rolling Meadows, Illinois, USA, Molon has pioneered custom coil winding, precision gear cutting, and specialized thermal management for high-duty applications. Our engineered solutions span fractional horsepower AC shaded pole gearmotors, Permanent Split Capacitor (PSC) drives, Permanent Magnet DC (PMDC) right-angle reducers, Brushless DC (BLDC) planetary gearing systems, and hybrid stepper actuators. By integrating custom mechanical design with stringent quality management certified to ISO 9001:2015 and ISO 13485:2016 (Medical Devices), we provide international B2B buyers with verifiable performance advantages.
Every speed reducer and custom gearmotor design manufactured in our facilities represents decades of empirical testing and engineering refinement. Rather than relying on rigid catalog offerings, Molon evaluates specific operational profiles including duty cycle (S1 through S9 continuous and intermittent ratings), ambient thermal envelopes (-40°C to +105°C), radial and axial thrust loads, and noise threshold criteria.
Our vertically integrated plant unifies copper magnetic wire winding, stator laminations, automated rotor balancing, CNC gear bobbing, ultrasonic cleaning, and 100% computerized end-of-line dynamometer testing under a unified Quality Management System.
Selecting the correct gear reduction topology requires balancing output torque demands, back-driving resistance, angular backlash tolerance, and overall physical dimensions. Below is an engineering overview of primary mechanical gear train architectures designed and built for global export:
Features sun, planet, and ring gear configurations delivering exceptionally high torque density in a compact coaxial inline envelope. Ideal for high peak torque loads, robotic actuators, and EV traction motor sub-assemblies.
Utilizes spur and helical gear trains housed within die-cast zinc or aluminum gearcases. Offers optimized mechanical efficiency (up to 95% per stage) with lower thermal dissipation losses for continuous-duty commercial pumps and augers.

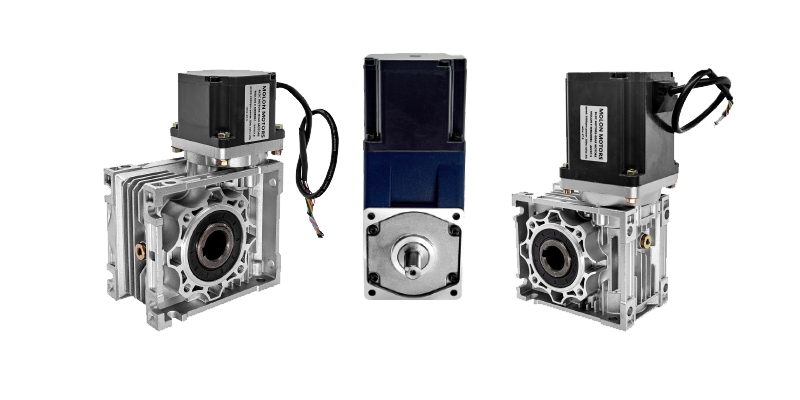

Redirects mechanical axis of rotation by 90 degrees while achieving high single-stage reduction ratios (up to 60:1). Inherent self-locking properties provide static holding capability for elevators, dampers, and medical positioners.
| Motor & Reducer Tech | Typical Voltage | Efficiency Range | Backlash Rating | Overhung Load Limit | Target Applications |
|---|---|---|---|---|---|
| Shaded Pole AC Reducer | 115/230 VAC, 50/60 Hz | 20% - 35% | 1.5° - 3.0° | Up to 150 N | Damper controls, timer drives, ice dispenser augers |
| PSC Synchronous Reducer | 115/230 VAC, 50/60 Hz | 45% - 65% | 1.0° - 2.0° | Up to 300 N | Metering pumps, commercial vending, refrigeration |
| PMDC Right-Angle Reducer | 12 / 24 / 36 VDC | 60% - 75% | 0.8° - 1.5° | Up to 550 N | Battery mobile equipment, solar trackers, mobility tech |
| BLDC Planetary Reducer | 24 / 48 / 310 VDC | 75% - 90%+ | < 15 arcmin | Up to 1200 N | Robotic joints, medical pumps, EV traction systems |
| Hybrid Stepper Reducer | Driver dependent (DC) | 65% - 82% | < 5 arcmin | Up to 400 N | Precision fluid dosing, automated diagnostic valves |
As a global exporter supplying tier-1 manufacturers across North America, Europe, and Asia, our catalog spans specialized sub-assemblies engineered to withstand rigorous environmental stressors, IP washdown requirements, and heavy overhung radial forces:
The industrial drive landscape is undergoing rapid transformation driven by industry 4.0 automation, electrification, and medical device miniaturization. Original Equipment Manufacturers evaluating long-term speed reducer supply chain partners must account for five pivotal macro trends:
Speed reducers are evolving from purely mechanical transmissions into integrated cyber-physical nodes. Next-generation speed reducers incorporate dual inductive encoders, hall-effect speed sensors, and micro-embedded thermal monitoring to support predictive maintenance over CAN-bus and CAN-FD interfaces.
Humanoid robotics, collaborative robots (Cobots), and multi-axis automated guided vehicles (AGVs) require gear reducers with zero-backlash mechanical response (< 1 arcmin). Strain wave harmonic reducers and cycloidal planetary drives represent the fastest-growing OEM component sector.
The push toward battery-operated equipment—ranging from micro excavators and narrow-aisle electric forklifts to light electric vehicles (LEVs)—requires speed reducers capable of operating at 48V–310V DC with peak torque efficiency exceeding 92% to maximize battery cycle life.
Furthermore, environmental compliance mandates (RoHS 3, REACH, TSCA) are accelerating the adoption of bio-degradable synthetic gear greases capable of maintaining shear stability over extended service lifetimes without off-gassing. Molon remains at the forefront of these material innovations, developing food-grade (NSF H1) and medical-grade lubricated speed reducers for sterile cleanroom environments.
Our dual production campuses in Arlington Heights and Rolling Meadows, Illinois encompass comprehensive tooling design, high-speed automated magnetic wire winding, CNC gear hobbing, and cleanroom sub-assembly. By keeping design engineering, manufacturing, and testing under unified quality oversight, Molon eliminates supply chain lag while maintaining tight tolerances (CNC machining down to ±0.01 mm).
Answers to critical technical and commercial questions routinely evaluated by OEM procurement managers and senior engineering teams:
All speed reducers manufactured by Molon undergo strict serial traceability, 100% end-of-line electrical and torque verification, and material compliance tracking under our UL Registered ISO Quality System.
Speak directly with a Molon application engineer in Illinois to analyze your torque requirements, gear ratios, and duty cycles for your next OEM production release.
